CodeVault — Secure Code Repository Management System

Foundation & Constraints

I started from a blank product definition: unify snippets, files, notes, and secrets in one local app, with no backend dependency for the core vault. The tech baseline was browser storage and React, later extended with Electron for a single-window desktop experience.

I had full control over navigation model, feature grouping, visual system, storage schema, encryption approach, and Electron packaging strategy. The binding constraints were the local-only trust model (device compromise is explicitly out of scope for the v1 threat model) and shipping without a design team.

Establishing Look & Feel

Brand intent: "Calm vault, sharp tool." The app should feel trustworthy and quiet on lock and secrets screens, and efficient wherever developers work (lists, search, file tree). No playful illustration overload — readability and hierarchy come first.

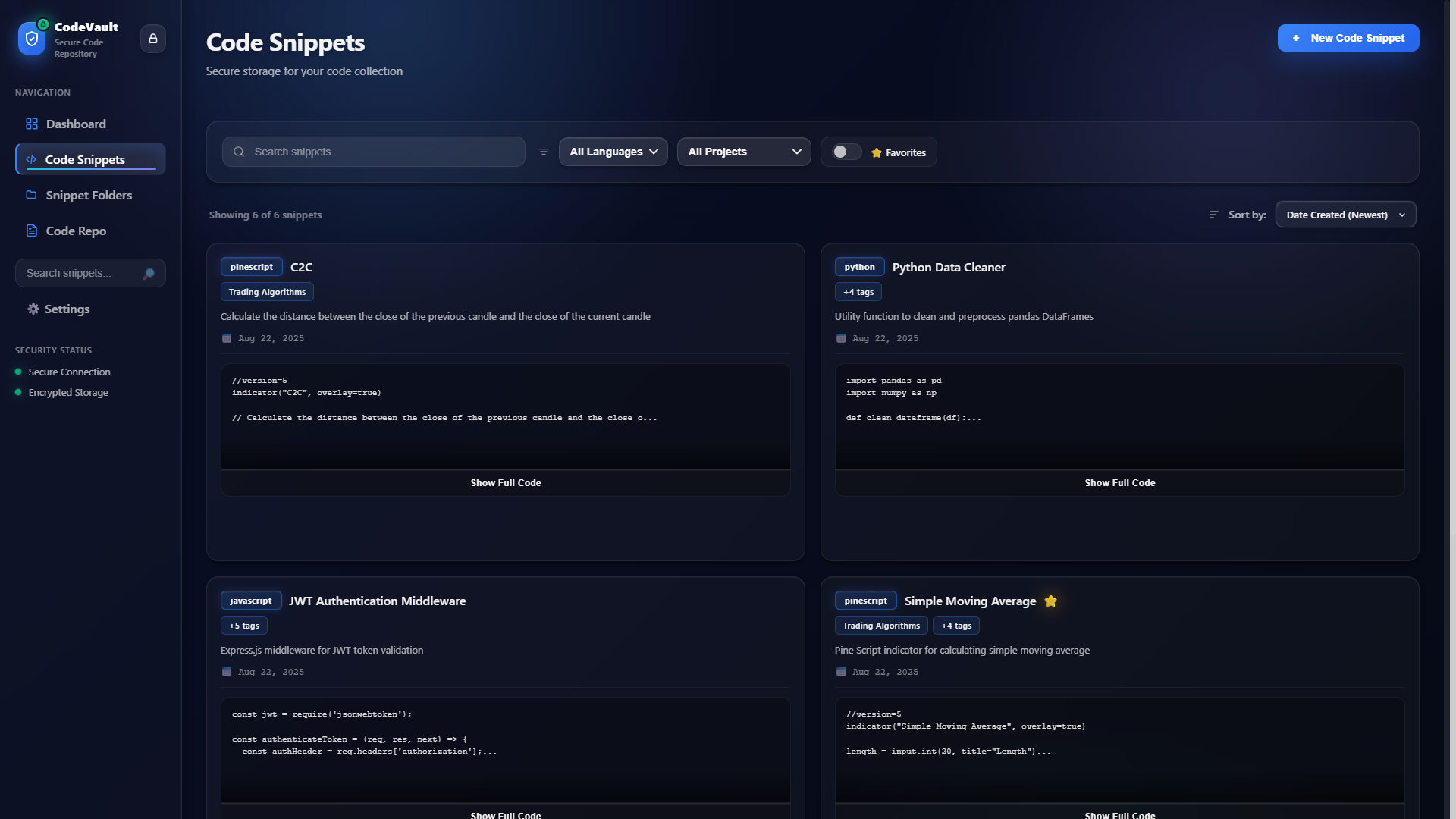

Chosen direction: "Dense Neutral"

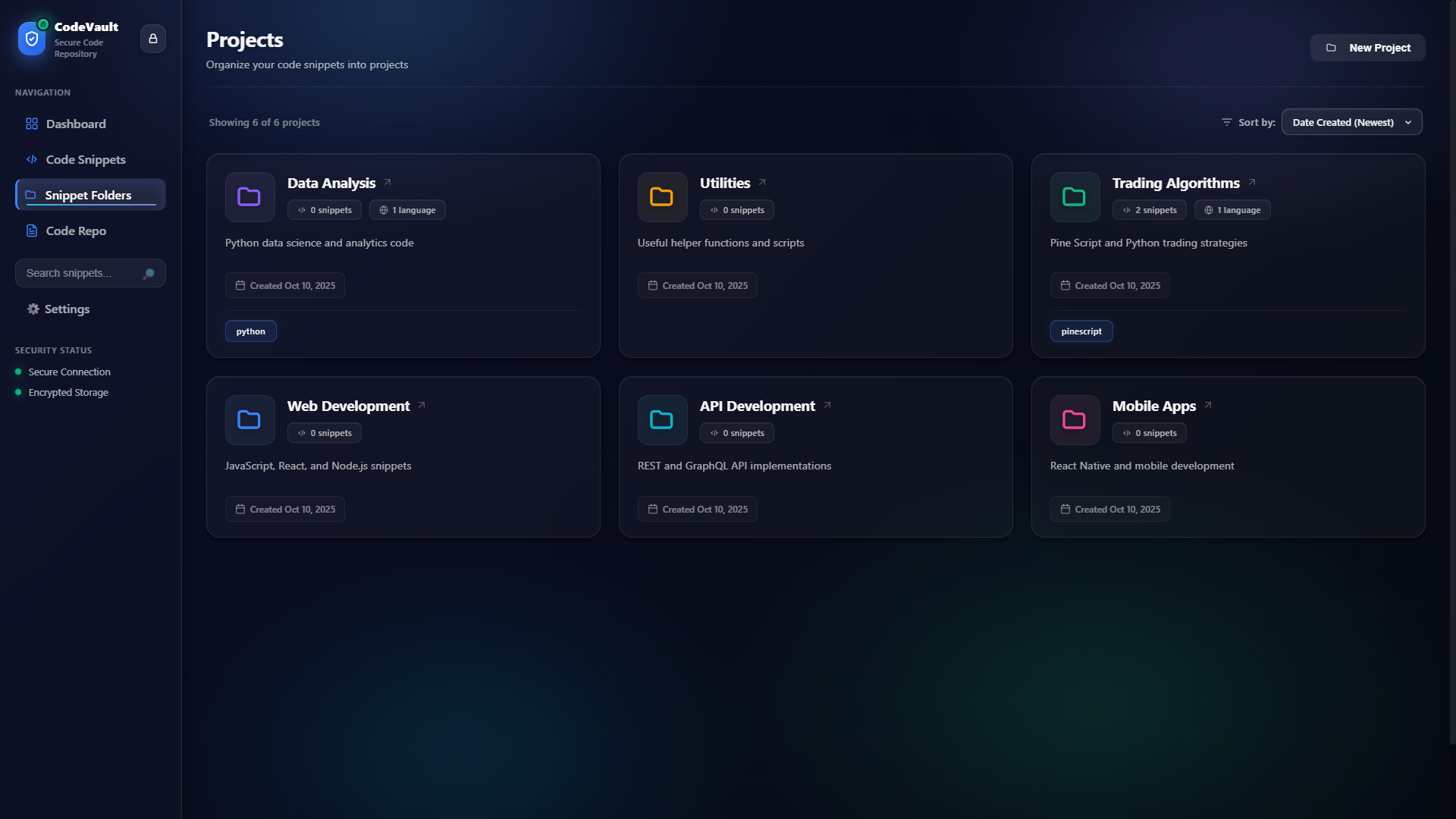

High density for catalogs (snippets, projects, search results). Neutral chrome so content — code, keys, filenames — stays the hero. Explicit states for lock, loading, empty, and destructive backup actions.

Why chosen: Snippets, search, and repo navigation are repeat tasks performed quickly. Optimizing for scanning and muscle memory beat onboarding comfort for the target user (developers storing and retrieving their own material).

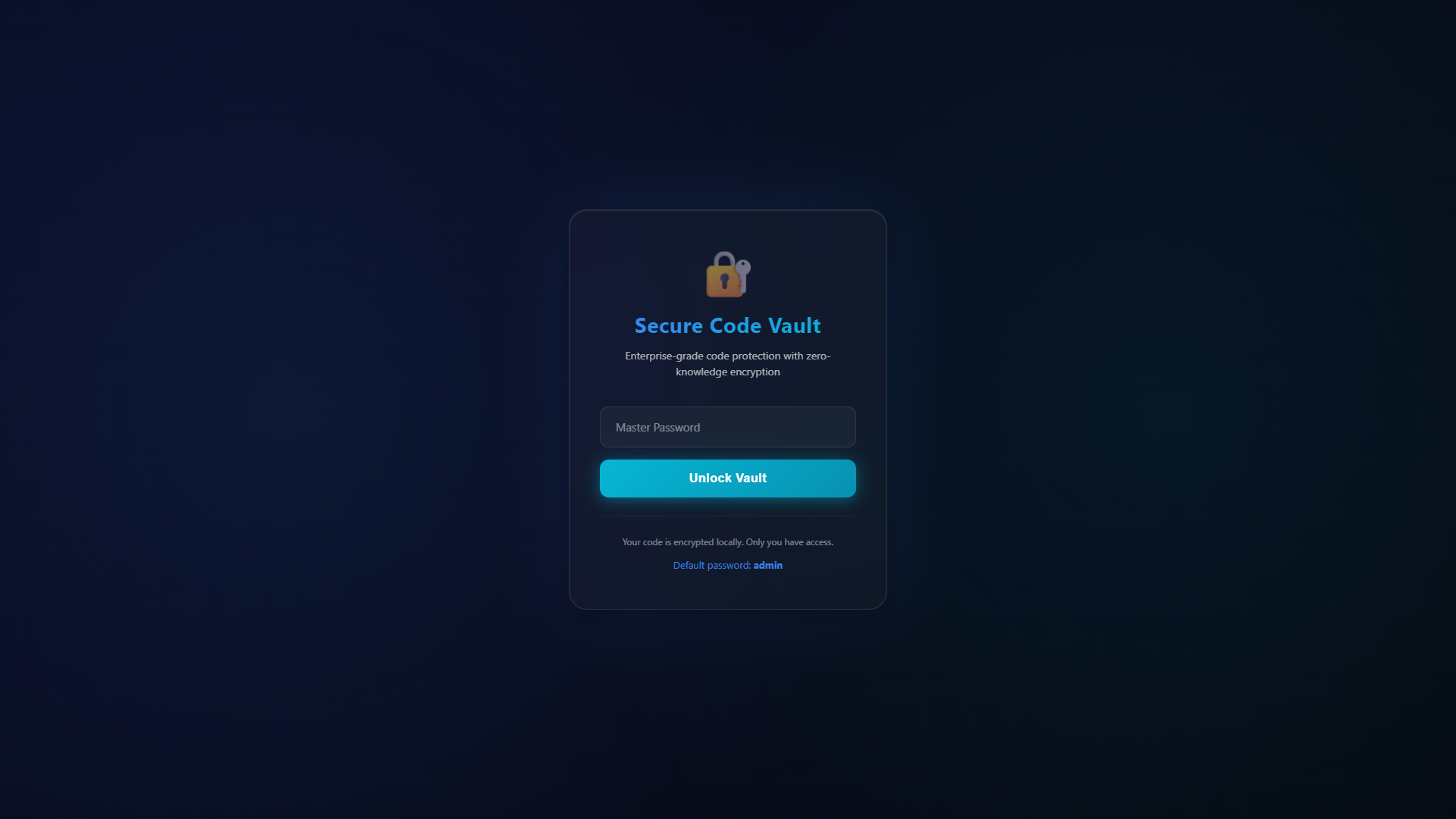

Mini Case Study: Vault Unlock → Session → Protected Content

The session lifecycle was the highest-stakes design and engineering problem: get it wrong and vault content leaks, or the friction makes the app unusable. Here's how I worked through it.

Requirements

• After launch, no vault content (snippets, secrets, repo, notes) is reachable without authentication.
• Session must expire on idle (auto-lock) and be refreshable on activity.
• Navigation must fail closed: an invalid session always routes to lock — no content flash, no stale UI.

Initial Exploration & Problems Found

Treating the lock screen as "just another route" introduced a class of problems that only surfaced under real use:

• Content flash: If session state updates asynchronously, a protected route could render briefly before the redirect fires.
• Forgotten sessions: Users staying unlocked all day created a false sense of security with no ambient awareness that the vault was open.
• Slow lock: Power users needed a way to lock without digging through settings menus — especially when leaving their desk.

Design Iteration

Each problem drove a specific design and engineering decision:

• Wrapped sensitive routes in a protected route pattern that checks session validity before render, not after mount — eliminating the content flash entirely.
• Added an app-wide auto-lock hook that resets on navigation activity and fires after a configurable idle threshold (set in Settings).
• Built a quick-lock shortcut accessible from any screen so locking is a two-keystroke action, not a menu dig.
• Session checks on route entry clear session state and replace history to /lock so the back button cannot re-expose prior views.

Design Rationale & Validation

Rather than formal multi-participant testing, I evaluated the flow using a structured heuristic pass against three tasks: cold-start unlock, navigation to a secrets surface, and quick-lock from an active session. Findings shaped the final decisions above.

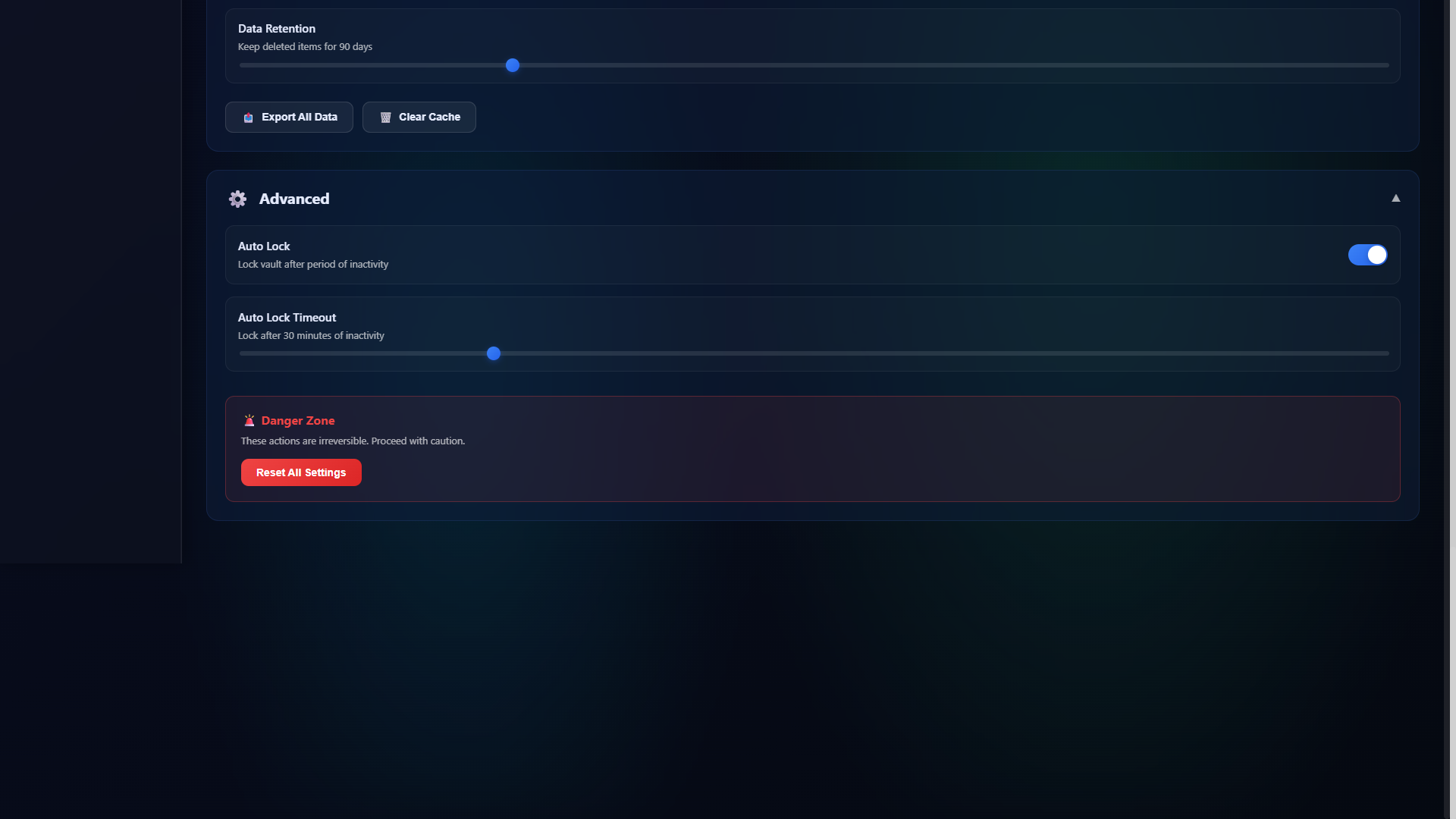

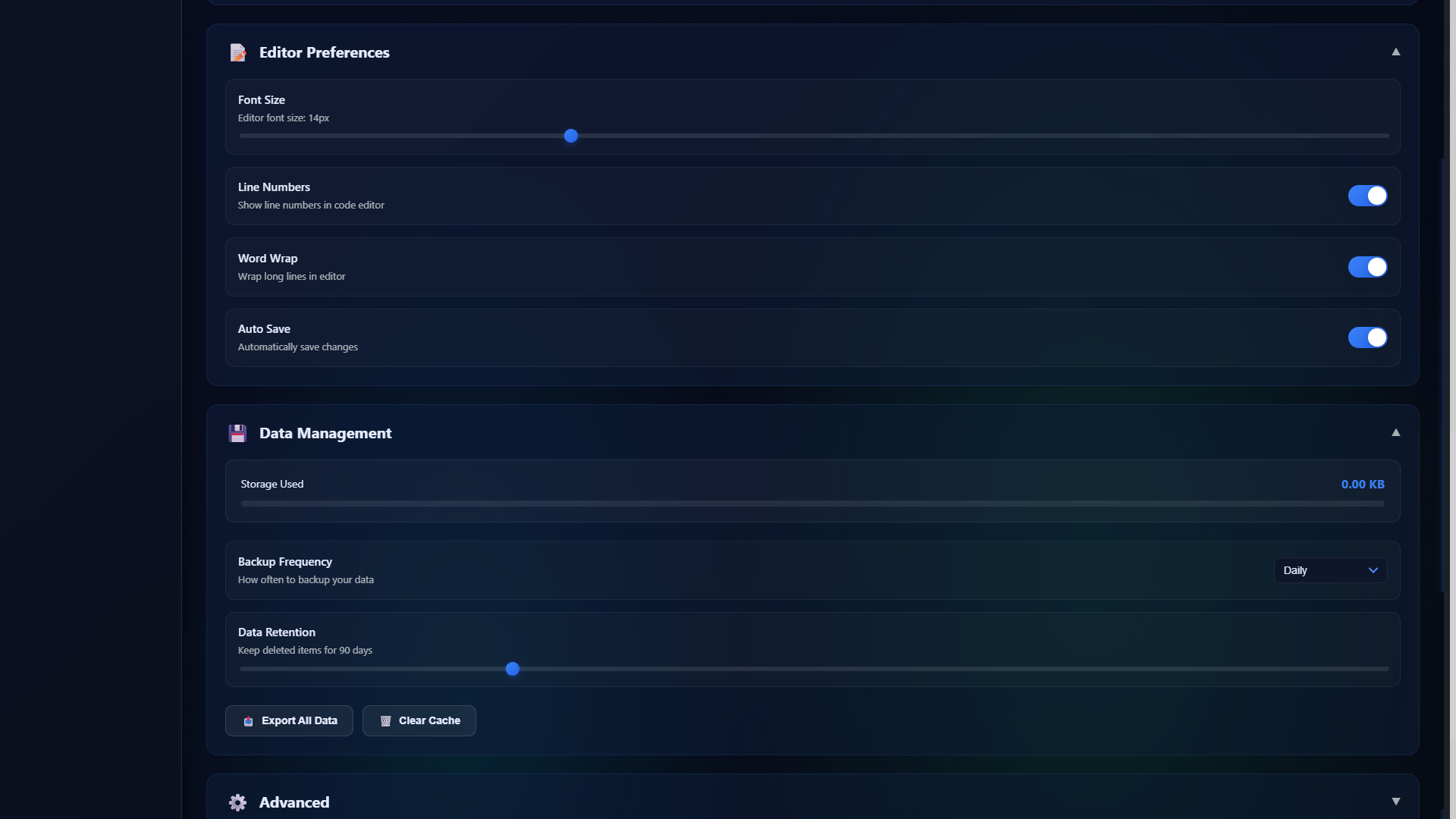

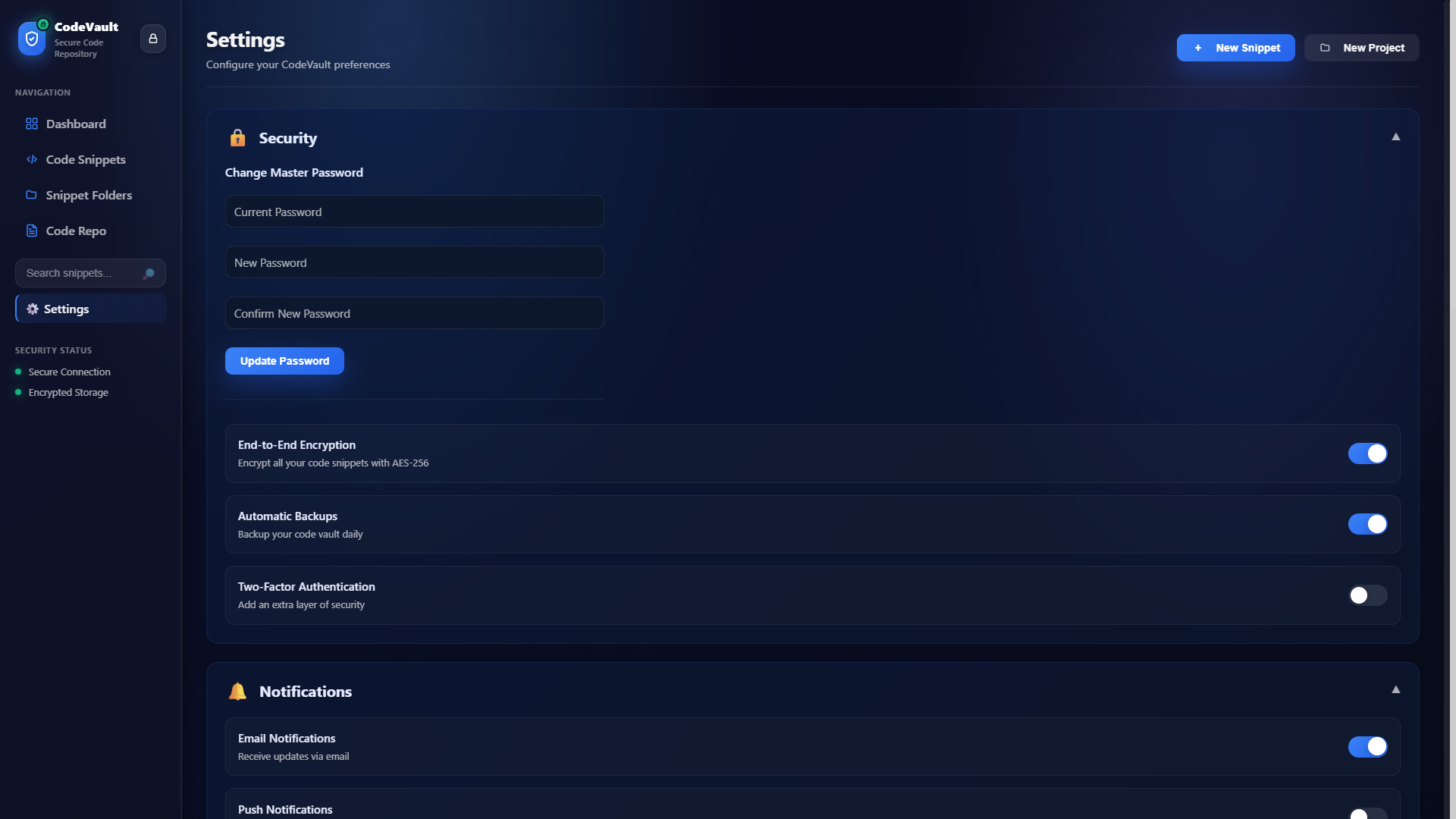

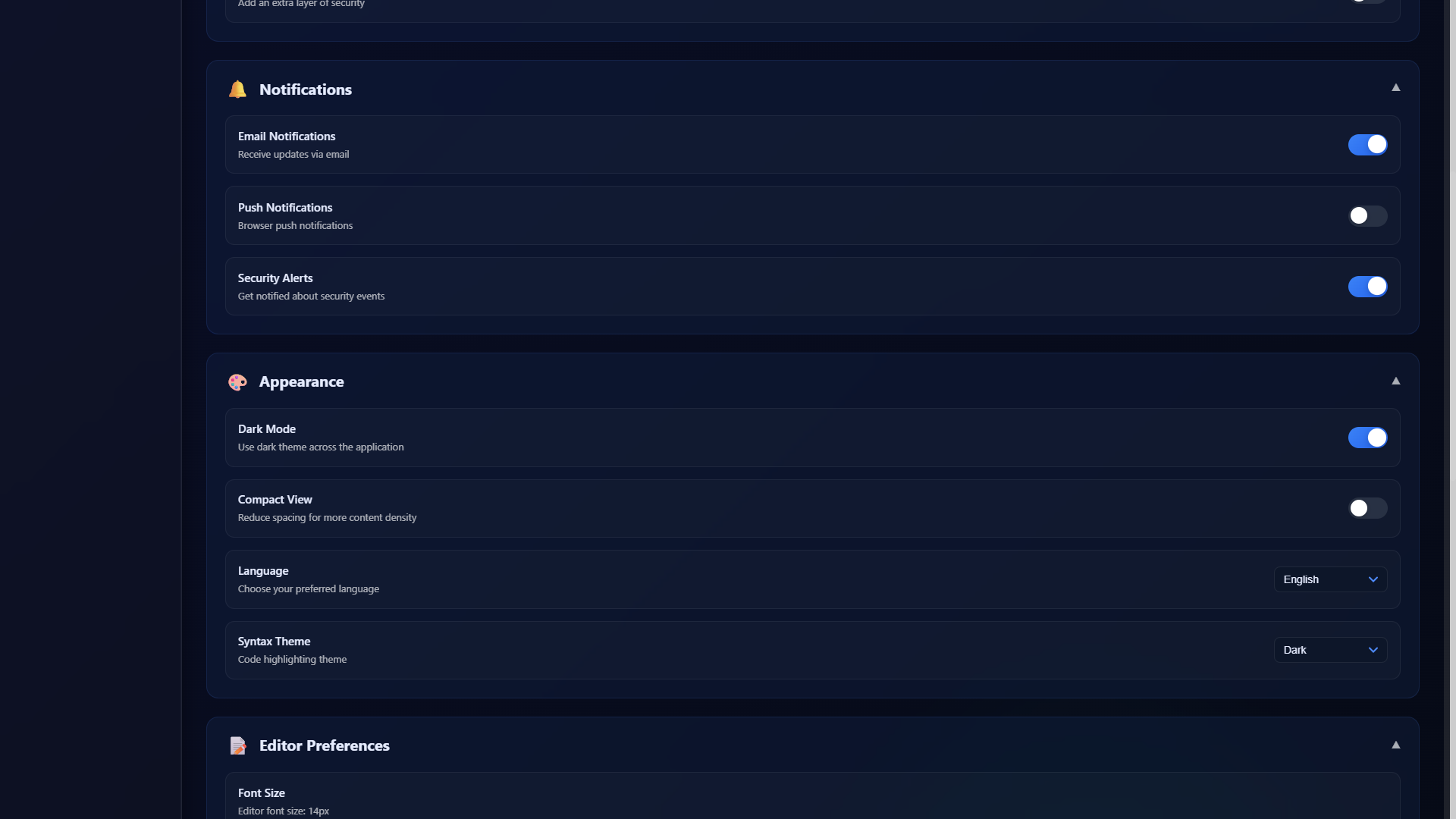

Settings — Configuration of the Session

All session behavior (idle timeout, auto-lock threshold, backup schedule) is controlled from a dedicated Settings surface with no hidden state. Destructive actions (lock now, reset vault) use an explicit confirmation step.

Design System

While building screens I simultaneously built out the component library in an atomic structure, so each new surface could compose from existing parts rather than inventing new ones.

Theme and density are centralized via CSS variables, making dark/light switching a single attribute toggle — the same pattern used on this portfolio.

Outcome

CodeVault shipped as a complete v1: a single portable Electron app that runs offline, keeps all vault data on-device in IndexedDB, and enforces client-side encryption for secrets categories. The hardest integration wins were aligning session management, encryption, IndexedDB durability, and Electron packaging into one coherent, testable product.

The project demonstrates the full design-to-delivery arc: product thinking (what belongs in a local vault), UX decisions (session lifecycle, information architecture), visual design (developer tool density and hierarchy), and front-end engineering (React, crypto, Electron).

Technical Appendix — for design-engineer readers

Cryptography

Web Crypto API throughout: AES-GCM (256-bit keys) for encryption; PBKDF2 for key derivation (100,000 iterations, SHA-256); per-encryption 96-bit GCM nonce (IV) so the same key never reuses a nonce.

Storage

IndexedDB for all vault records, with structured schemas per category. Settings and scheduler state written separately. Migration hooks handle schema evolution.

Desktop packaging

Electron single-instance lock prevents duplicate vault windows. IPC channels are guarded by trusted-sender URL checks so renderer cannot call privileged main-process APIs from injected content. Optional LibreOffice path enables office-to-PDF conversion in packaged builds.

Routing

HashRouter instead of BrowserRouter for compatibility with both file:// (Electron) and HTTP contexts. Protected routes check session state synchronously before render; invalid session replaces history to /lock so Back cannot re-enter protected views.
